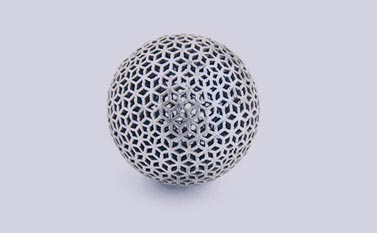

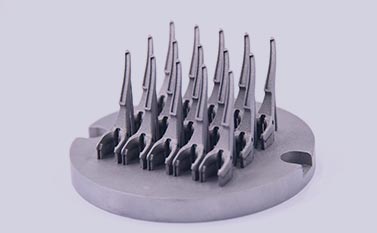

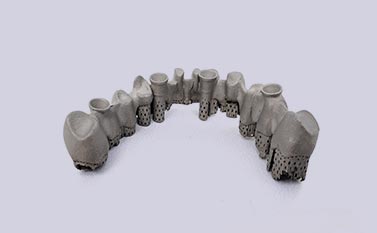

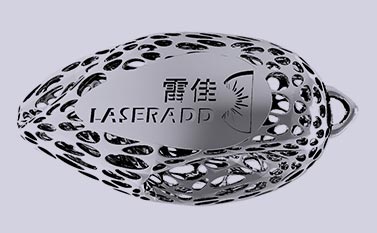

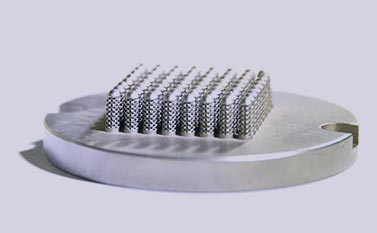

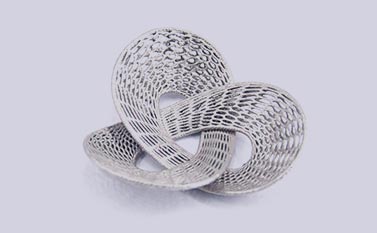

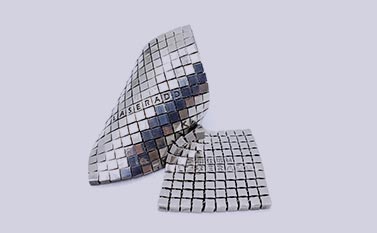

In order to meet the needs of high-precision parts and research and development of small laser selective melting equipment, forming precision up to 20μm, is the highest forming precision SLM equipment on the market, can achieve high precision, high quality forming, mainly used in jewelry, dentistry, scientific research and education and other industries precision small parts research and development and production
Device name
laser
Scanning system
Scanning speed
Molding cavity size
The thickness of the layered
Feeding way
Molding material
The operating system
The control software
The data format
The power supply
External dimensions of equipment
The environment temperature

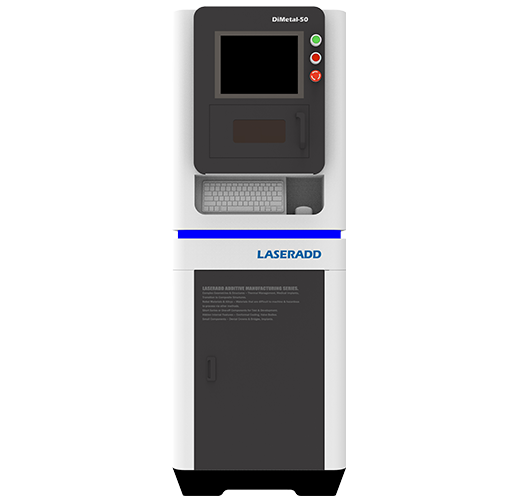

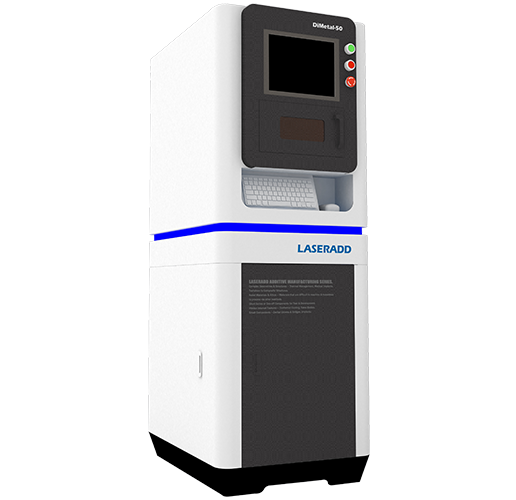

DiMetal-50
Infrared Ytterbium doped fiber laser, 70W (other power lasers are supported)
High precision scanning galvanometer
Top 7 m/s
50mm*50mm*50mm
0.02 mm to 0.1 mm
Double cylinder one-way powder supply
Stainless steel, cobalt chromium alloy, titanium alloy, high temperature alloy, precious metals and other metal powder
Windows 7 64 bits
Independent development of control and path planning software system
STL file or other convertible format
220V 50/60 hz 16A 1KW single-phase power
616mm (L) *810mm (W) *1750 (H)
Operating temperature 15-26℃
